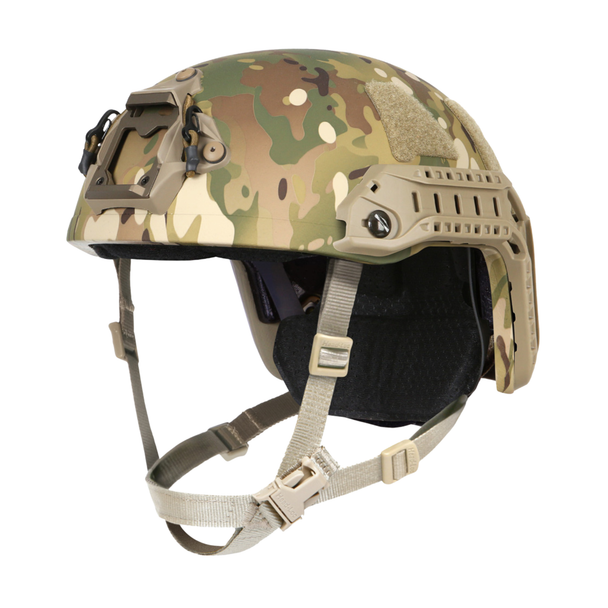

Ops Core FAST XR High Cut Helmet System

• Lightweight Modular Bungee Shroud (MBS) reduces snag hazards and features carabiner clips to improve NVG retention and stability while reducing interference with other rail-mounted accessories
• PowerPath ARC Rail system provides a lightweight mounting solution for Ops-Core headborne ecosystems
• Vented Lux Liner with Occ-Dial Universal Fitband offers comfort and ventilation
• Head-Loc retention chinstrap maintains security and stability
• External VELCRO® Brand loop kit allows for quick and easy attachment and detachment of headborne accessories
• Proprietary recessed groove accommodates over-the-head communication accessories with no interference and allows for helmet donning and doffing without headset removal

Blunt Impact Protection

• <150 G’s at 10 ft/s per ACH CO/PD 05-04: 2007

Compression Testing

• Top-Bottom: .020” (.51 mm) Max 400 lbs. (181.44 kg)
• Side-Side: 1.125” (3.18 mm) Max @ 300 lbs. (136.08 kg) per MICH Type I/F helmet (per ACH CO/PD 05-04: 2007)

Environmental Resistance

• Temperature: Storage and Operating at Ambient, Cold: -60°F (-51°C), Hot: +160°F (71°C)
• Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007

Shell Construction

• Two-Stage Non-Slit

Shell Thickness

• .280” (M) .290” (L/XL/XXL)

Shell Geometry (Curvature)

• FAST

Cut Style (Side Protection)

• High Cut

Available Sizes

• Medium (M), Large (L), X-Large (XL), XX-Large (XXL)

Available Colors

• Tan 499, Black, Ranger Green, MultiCam®, Urban Gray

Performance Specifications

In accordance with Gentex PS1519

• NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ / 44mag @ 1,400 ft/s) Threats

Fragmentation Protection

• 2-Grain RCC: V50 BL(P) 5,300 ft/s (1,615 m/s)
• 6-Grain RCC: V50 BL(P) 4,360 ft/s (1,329 m/s)
• 9-Grain RCC: V50 BL(P) 4,230 ft/s (1,289 m/s)
• 12-Grain RCC: V50 BL(P) 3,870 ft/s (1,179 m/s)
• 17-Grain FSP: V50 BL(P) 3,250 ft/s (991 m/s)

Resistance to Penetration

• 9mm FMJ RN, 124 gr: VO RTP at 0°(>37°) Obliquity 1,407 ft/s (429 m/s)
• 9mm x 18mm SLLC, 105 gr: VO RTP at 0°(>37°) Obliquity 1,017 ft/s (310 m/s)
• .44 Mag SWC, 240 gr: VO RTP at 0°(>37°) Obliquity 1,374 ft/s (419 m/s)
• 9mm JHP, 124 gr: VO RTP at 0°(>37°) Obliquity 1,125 ft/s (343 m/s)
• 7.62mm x 39mm LC, 123 gr: VO RTP at 0°(>37°) Obliquity 1,183 ft/s (360 m/s)
• .40S&W FMJ, 180 gr: VO RTP at 0°(>37°) Obliquity 1,007 ft/s (307 m/s)

Shell Sizing & Coverage

• Medium: Head Size 20 ½”-22” (53-56 cm), Square Coverage 142 in² (916 cm²)
• Large: Head Size 22”-23 ¼” (56-59 cm), Square Coverage 154 in² (994 cm²)
• X-Large: Head Size 23 ¼”-24 ¼” (59-62 cm), Square Coverage 167 in² (1077 cm²)
• XX-Large: Head Size 24 ¼”-25 ½” (62-64 cm), Square Coverage 176 in² (1135 cm²)

Shell Weight

• Medium: 1.57 lbs (713g)
• Large: 1.72 lbs (780g)
• X-Large: 1.89 lbs (856g)
• XX-Large: 1.97 lbs (894g)

System Weight

• Medium: 2.61 lbs (1184g)
• Large: 2.74 lbs (1245g)
• X-Large: 2.95 lbs (1338g)
• XX-Large: 3.04 lbs (1379g)
