TOMManikin GSW with Amputation

The North American Rescue TOMManikin GSW with Amputation is a full-body TCCC training manikin co-developed by NAR Simulation and Techline Technologies Inc., configured specifically for gunshot wound and traumatic amputation casualty scenarios. With a precisely defined seven-segment injury configuration including a full left leg amputation, junctional pelvic wound, GSW chest with entry and exit wounds, and true through-and-through GSW right leg, this manikin enables instructors to build high-fidelity hemorrhage control, tourniquet, airway, and IO access training scenarios. Wireless remote control of bleeding, breathing, voice, and pulse across up to 12 units simultaneously. Backed by a 3-year manufacturer's warranty and assigned NSN 6910-01-705-3130.

GSW and Amputation Configured TCCC Training Manikin with Remote-Controlled Bleeding and Full Intervention Capability

Features

• Seven-segment injury configuration with specific GSW chest, junctional pelvic wound, right leg through-and-through GSW, and full left leg amputation for realistic multi-casualty TCCC training
• NAR Simulation Advanced Remote Tablet and Software controls bleeding locations, bleeding type, breathing rates, voice responses, and pulse rate and pressure wirelessly across up to 12 units
• 35 bleeding operative sites with 1.2 gallon (4.5 liters) onboard blood reservoir
• Realistic bilateral chest rise with remote-controlled breathing rates: slow, normal, and fast
• Radial and carotid pulse simulation with variable rate and pressure including normal, bounding, and thready
• Tourniquet application at proximal, junctional, and abdominal sites
• Bilateral needle decompression and chest tube insertion
• Airway management including NPA, OPA, supraglottic, intubation, and surgical airway
• IV and IO access at sternal, humeral, and antecubital sites
• Realistic chest seal placement
• Custom voice tracks uploadable in any language with 2-way instructor communication via Bluetooth headset
• Welded steel frame with solid steel joints and rugged silicone skin withstands extremity pressure up to 6,000 lbs
• Onboard 12V rechargeable NiMH batteries with smart chargers
• Water-resistant with quick setup, rapid reset, and minimal maintenance
• 3-year manufacturer's warranty

Injury Configuration

• Head: Uninjured head skin

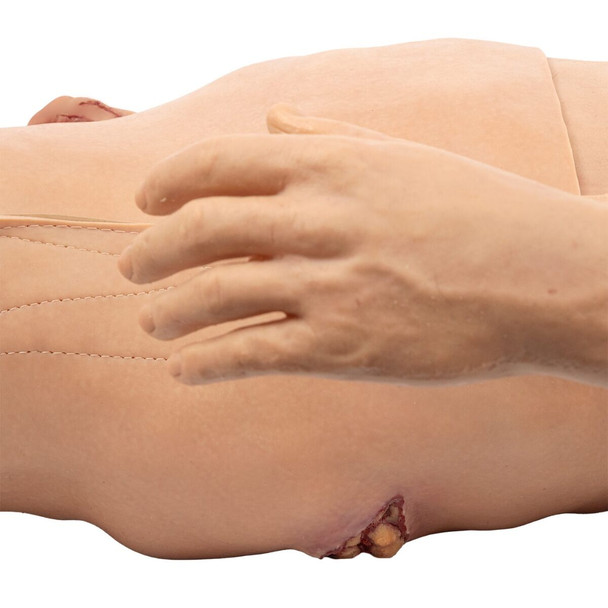

• Chest: GSW chest skin with entry wound to right chest and exit wound to right axilla
• Right arm: Uninjured arm with radial pulse, IV and IO access
• Left arm: Uninjured arm with radial pulse, IV and IO access
• Pelvic: Injured male pelvic skin with avulsed testicle, packable GSW entrance wound to left inguinal area, exit wound to left buttocks
• Right leg: GSW injured leg with true through-and-through entry and exit wound
• Left leg: Full amputation

Operational Medical Procedures

• Tourniquet application at proximal, junctional, and abdominal sites
• Wound packing with bleeding control
• Airway management including NPA, OPA, supraglottic, intubation, and surgical airway
• Bilateral needle decompression and chest tube insertion
• IO access sternal and humeral, IV access at antecubital sites
• Chest seal placement

Specifications

• Assembled manikin dimensions: L 74" x W 24" x H 10"
• Carrier bag dimensions (2x): L 42" x W 24" x H 16"
• Accessories Pelican case: L 13.74" x W 11.63" x D 5.9"
• Weight: 160 to 190 lbs, configuration dependent
• Power: 12V / 5A and 10A NiMH rechargeable batteries with smart chargers
• Control range: Wireless tablet, controls up to 12 units
• Blood reservoir: 1.2 gallon onboard
• Breathing: Realistic bilateral chest rise, remote controlled slow, normal, and fast rates
• Pulse simulation: Radial and carotid, variable rate and pressure
• Bleeding sites: 35 operative sites
• Construction: Welded steel frame, solid steel joints, rugged silicone skin
• Warranty: 3-year manufacturer's warranty
• NSN: 6910-01-705-3130

What's in the Box

• TOMManikin GSW with Amputation manikin
• NAR Simulation Advanced Remote Tablet and Software
• 1.2 gallon onboard blood reservoir
• Pelican 1500 accessories case
• 12V NiMH batteries (5AH and 10AH) with smart chargers
• T-handle tool and fluid connectors
• Hook and loop training uniform
• NAR IFAK
• 35 bleeding operative sites
• Instructor Bluetooth headset
• TOMManikin Operator's Manual
• Two 3-wheeled carrier bags for storage and transport

Item Details

• SKU: 93-0369
• Brand: North American Rescue
• NSN: 6910-01-705-3130
