Multi-TOMManikin

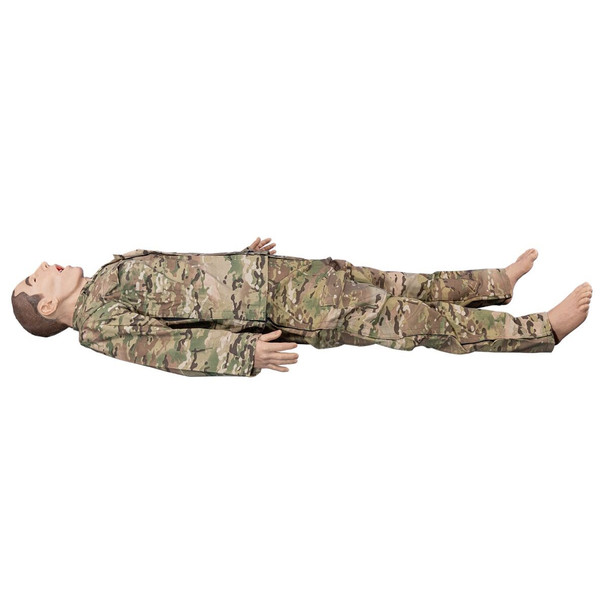

The North American Rescue Multi-TOMManikin is a full-body TCCC training manikin co-developed by NAR Simulation and Techline Technologies Inc., designed to maximize training versatility through four interchangeable right leg configurations in a single platform. Instructors can swap between an uninjured leg, GSW with true through-and-through entry and exit wound, partial amputation foot, and full amputation above the knee without purchasing multiple manikins. Combined with a GSW chest, junctional pelvic wound, bilateral IV and IO access, 35 bleeding operative sites, and wireless remote control of bleeding, breathing, voice, and pulse across up to 12 units, the Multi-TOMManikin supports the full spectrum of TCCC casualty scenarios from a single system. Backed by a 3-year manufacturer's warranty.

Four Interchangeable Right Leg Configurations in One Full-Body TCCC Training Manikin

Features

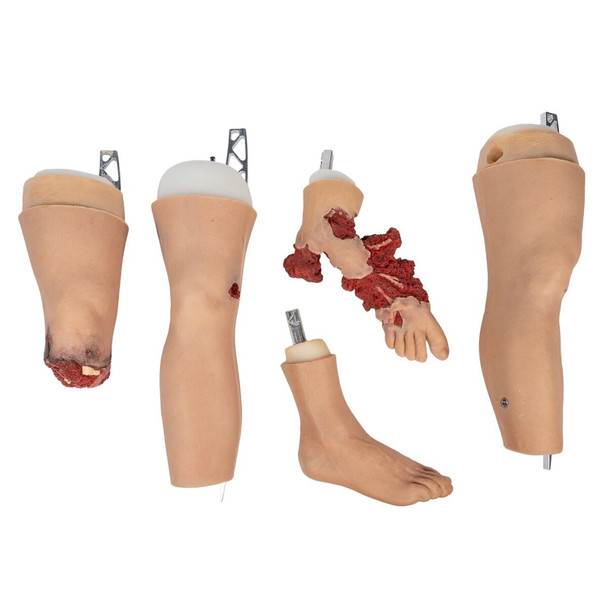

• Four interchangeable right leg configurations included: uninjured, GSW with true through-and-through entry and exit wound, partial amputation foot, and full amputation above the knee
• NAR Simulation Advanced Remote Tablet and Software controls bleeding, breathing, voice responses, and pulse rate and pressure wirelessly across up to 12 units simultaneously
• 35 bleeding operative sites with 1.2 gallon (4.5 liters) onboard blood reservoir
• Realistic bilateral chest rise with remote-controlled breathing rates: slow, normal, and fast
• Radial and carotid pulse simulation with variable rate and pressure including normal, bounding, and thready
• Tourniquet application at proximal, junctional, and abdominal sites
• Bilateral needle decompression and chest tube insertion
• Airway management including NPA, OPA, supraglottic, intubation, and surgical airway
• IV and IO access at sternal, humeral, antecubital, and tibial sites
• Custom voice tracks uploadable in any language with 2-way instructor communication via Bluetooth headset
• Welded steel frame with solid steel joints and rugged silicone skin withstands extremity pressure up to 6,000 lbs
• Onboard 12V rechargeable NiMH batteries with smart chargers
• Water-resistant with quick setup, rapid reset, and minimal maintenance
• Supports combat operations, disaster simulations, and mass casualty training scenarios
• 3-year manufacturer's warranty

Injury Configuration

• Head: Uninjured head skin
• Chest: GSW chest skin with entry wound to right chest and exit wound to right axilla
• Right arm: Uninjured arm with radial pulse, IV and IO access
• Left arm: Uninjured arm with radial pulse, IV and IO access
• Pelvic: Injured male pelvic skin with avulsed testicle, packable GSW entrance wound to left inguinal area, exit wound to left buttocks

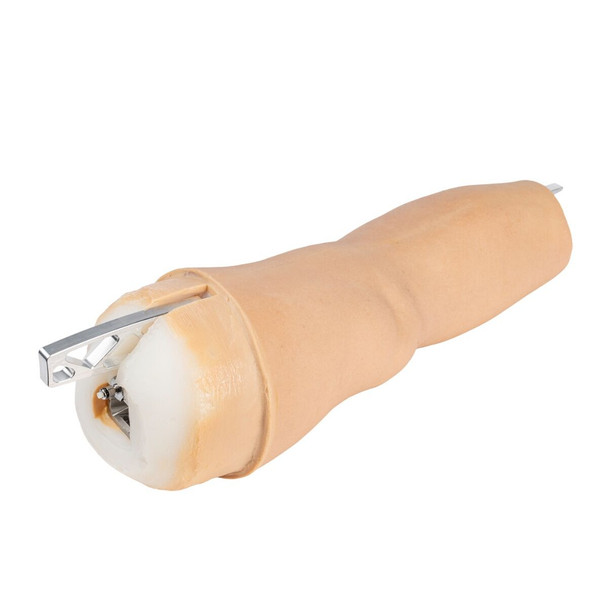

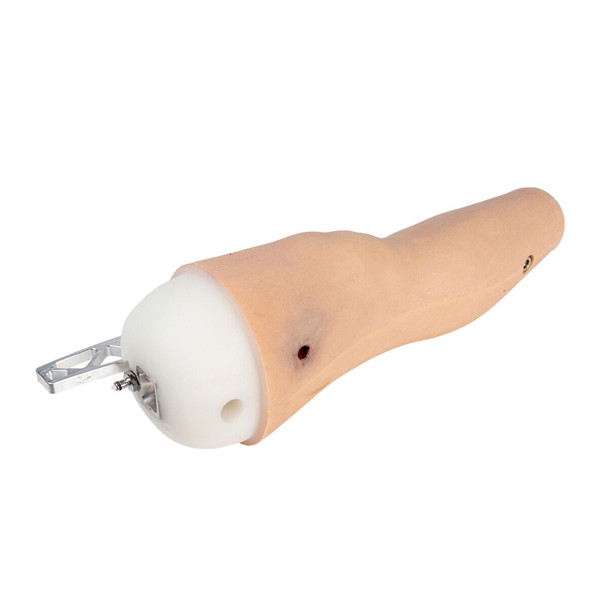

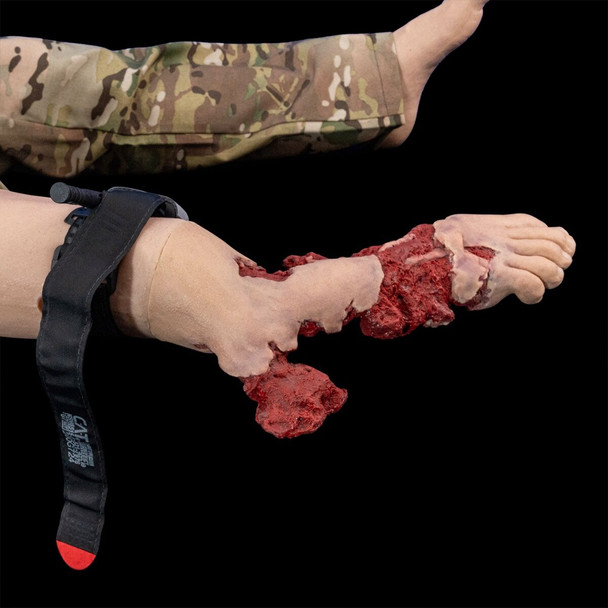

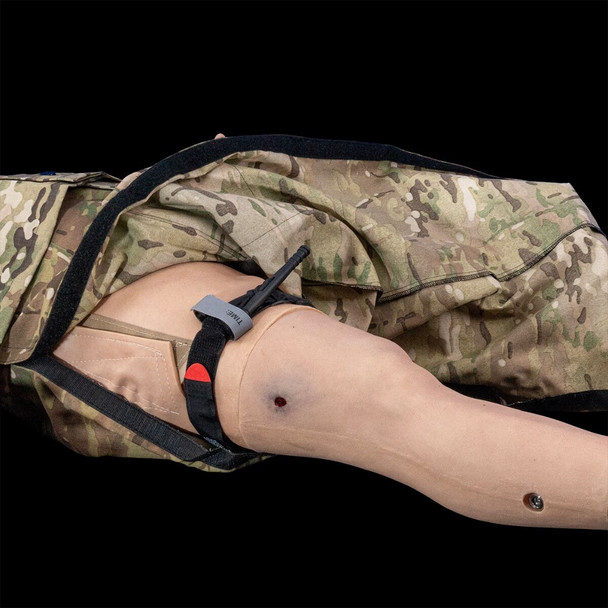

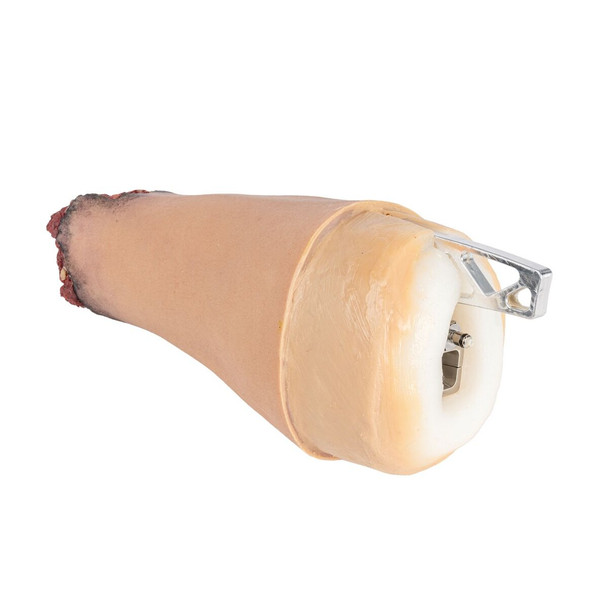

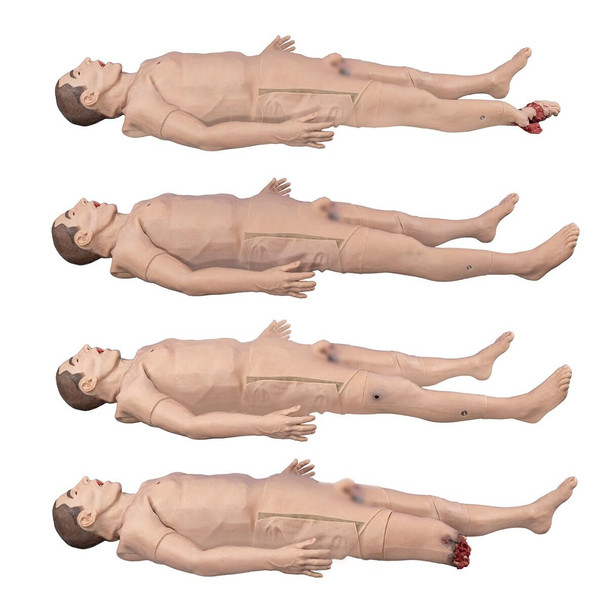

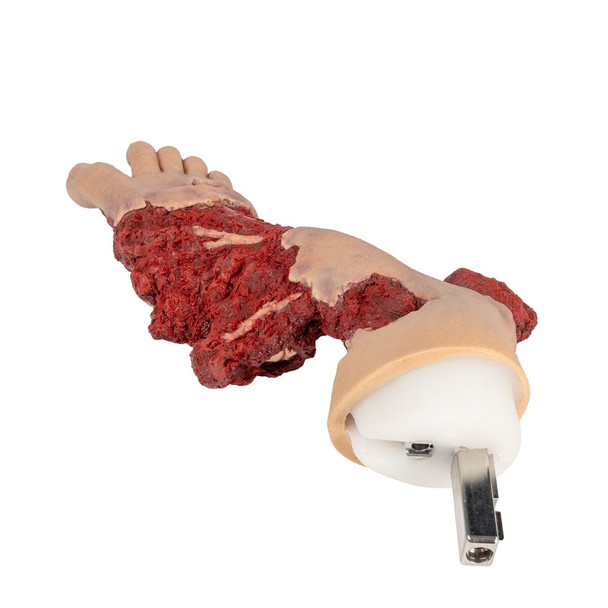

• Right leg: Four interchangeable configurations: uninjured leg, GSW injured leg with true through-and-through entry and exit wound, partial amputation foot, full amputation above the knee
• Left leg: Uninjured with Tibial IO access

Operational Medical Procedures

• Tourniquet application at proximal, junctional, and abdominal sites
• Wound packing with bleeding control
• Airway management including NPA, OPA, supraglottic, intubation, and surgical airway
• Bilateral needle decompression and chest tube insertion
• IV and IO access at sternal, humeral, antecubital, and tibial sites
• Chest seal placement

Specifications

• Assembled manikin dimensions: L 74" x W 24" x H 10"
• Carrier bag dimensions (2x): L 42" x W 24" x H 16"
• Accessories Pelican case: L 13.74" x W 11.63" x D 5.9"
• Weight: 160 to 190 lbs, configuration dependent
• Power: 12V / 5A and 10A NiMH rechargeable batteries with smart chargers
• Control range: Wireless tablet, controls up to 12 units
• Blood reservoir: 1.2 gallon onboard
• Breathing: Realistic bilateral chest rise, remote controlled slow, normal, and fast rates
• Pulse simulation: Radial and carotid, variable rate and pressure
• Bleeding sites: 35 operative sites
• Construction: Welded steel frame, solid steel joints, rugged silicone skin
• Warranty: 3-year manufacturer's warranty

What's in the Box

• Multi-TOMManikin manikin with four interchangeable right leg configurations
• NAR Simulation Advanced Remote Tablet and Software
• 1.2 gallon onboard blood reservoir
• Pelican 1500 accessories case
• 12V NiMH batteries (5AH and 10AH) with smart chargers
• T-handle tool and fluid connectors
• Hook and loop training uniform
• NAR IFAK
• 35 bleeding operative sites
• Instructor Bluetooth headset
• TOMManikin Operator's Manual
• Two 3-wheeled carrier bags for storage and transport
