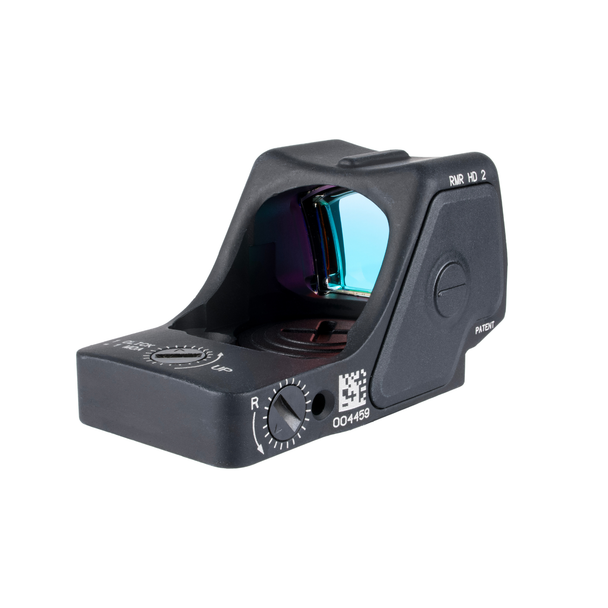

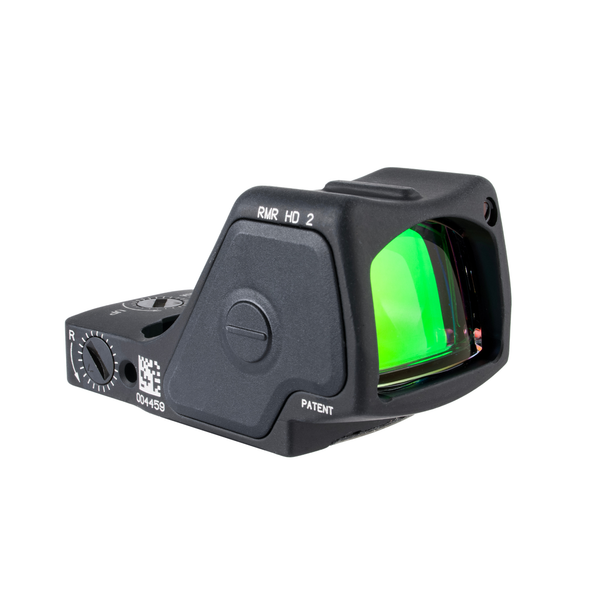

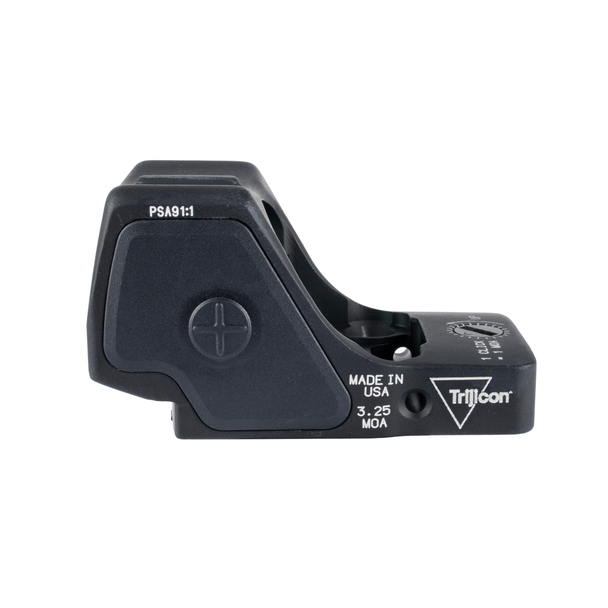

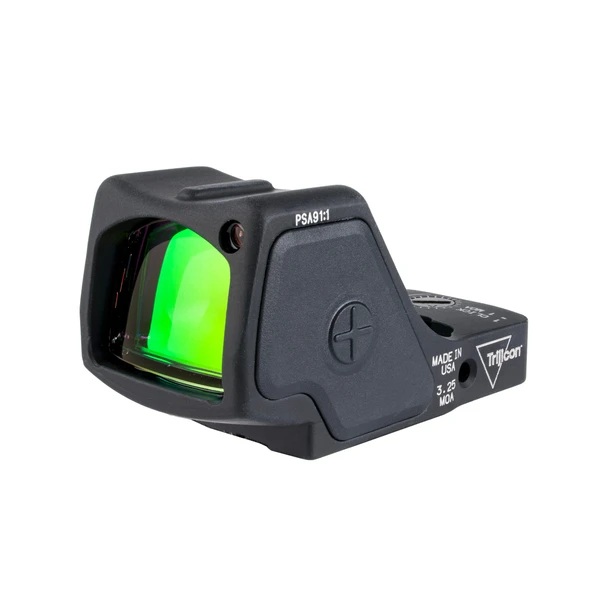

Trijicon RMR HD Red Dot Sight

The Next Evolution of the Trijicon RMR, Now With a Forward-Mounted Light Sensor

Trijicon RMR HD builds on the proven RMR Adjustable LED platform for law enforcement and military use, adding a forward-mounted light sensor, a larger viewing window, and a long-lasting top-loading battery. Available with a precise 1.0 MOA dot or a fast-acquisition 3.25 MOA dot, both paired with a 55 MOA selectable reticle, the RMR HD is built from forged 7075-T6 aluminum for duty-grade reliability.

Features

• Top-loading battery. Battery changes are easy, with no need to dismount the optic, using a common CR2032 battery rated for up to 3 years of life.
• Forward-mounted light sensor. Enables the RMR HD's Automatic Brightness mode to read lighting conditions at the target itself, rather than just at the user.
• Upgraded windage and elevation adjusters. More tactile and audible clicks provide tool-less zeroing, even while wearing gloves.
• Rugged, durable construction. A 7075-T6 forged aluminum housing is waterproof to 66 feet (20 meters), built to withstand hard duty use.
• Large, unobstructed field of view. A parallax-free design makes the reticle easy to find and track without obstruction.
• Reliability for everyday carry. The optic's unique housing shape diverts impact force away from the lens to help protect it from drops and bumps.
• Complete user control illumination settings. Nine brightness settings with multiple modes provide excellent visibility in any lighting condition.
• Clear target visibility. Advanced lens technology provides a crisp, clear field of view.
• Identical footprint as RMR. Mounts easily on popular red-dot-ready pistols using the same base as the original Trijicon RMR.
• Improved controls. Larger, more tactile buttons provide positive feedback when operating the optic with duty gloves.
• Index ridge alignment aid. A built-in index point on the housing helps you acquire the sight picture quickly, even from atypical shooting positions.
• Button lock-out mode. Secures the Auto-Brightness setting in place, ideal for everyday carry use.
• Manual brightness lock-in mode. Secures your chosen brightness setting indefinitely so it can't be accidentally changed.
• Brightness response setting. Choose between Normal Auto (default), High Auto, and Low Auto adjustment behavior to match your preference.

Mounting and Compatibility

• Footprint. Identical footprint to the original Trijicon RMR, mounting directly to a wide range of optics-ready pistols and duty holsters built around that pattern.

Power and Battery

• Battery. Runs on a single top-loading CR2032, accessible without removing the optic from the slide.
• Runtime. Rated for over 3 years of continuous use at brightness setting 5, dot only.

Specifications

• Reticle: 1.0 MOA dot or 3.25 MOA dot, each with a 55 MOA selectable reticle, red, LED illumination
• Magnification: 1x
• Eye relief: Infinite
• Adjustment: 1 MOA per click, 135 MOA total travel
• Housing material: 7075-T6 aluminum
• Submersion depth: 65 feet (20 meters)
• Operating temperature: -40°F to 140°F (-40°C to 60°C)
• Battery: 1 CR2032, top-loading, over 3 years of runtime at brightness setting 5
• Illumination settings: 9 brightness settings, including 3 night vision compatible and 1 super-bright setting
• Weight: 1.69 oz (47.91g)
• Dimensions: 2.15 in x 1.27 in x 1.19 in (54.61mm x 32.26mm x 30.23mm)
• Mount type: RMR footprint, direct mount

What's in the Box

• Trijicon RMR HD sight
• 1x CR2032 battery
• 1x T10 Torx key
• 2x #6-32 x 1/2 inch Torx head screws
• 2x #6-32 x .380 inch Torx head screws
• 1x battery cap tool
• 1x manual
• 1x Buttonology instruction card
• 1x warranty card
• 1x Trijicon sticker

Item Details

• SKU: RMHD1-C-3200001 (1.0 MOA dot), RMHD2-C-3200002 (3.25 MOA dot)
• Brand: Trijicon
• Category: Open pistol sight
• Reticle color: Red
• Housing material: 7075-T6 aluminum
• Housing color: Black
