Streamlight TLR-7X Sub Weapon Light

Streamlight TLR-7 X Sub Multi-Fuel, 725 Lumen Rail-Mounted Weapon Light for Subcompact Handguns

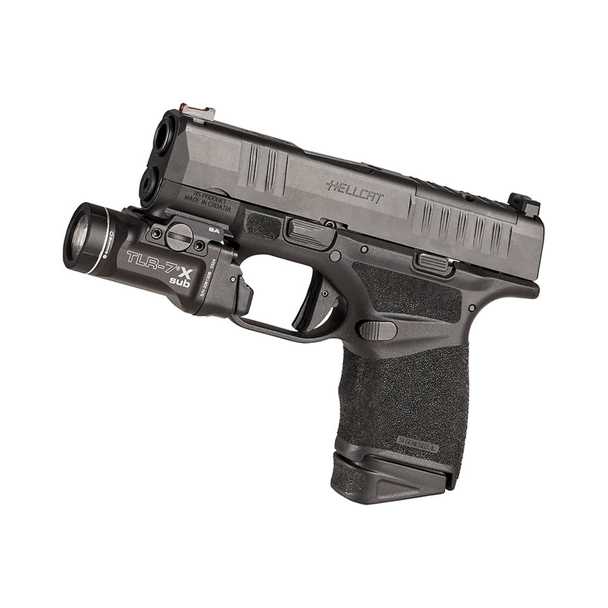

The Streamlight TLR-7® X Sub is a compact, rail-mounted weapon light designed specifically for subcompact handguns. Combining the proven TLR-7 platform with Streamlight's Multi-Fuel technology, the TLR-7 X Sub accepts either the Streamlight SL-B9® USB-C rechargeable protected lithium-ion battery pack or a CR123A lithium battery, giving you the flexibility to choose between rechargeable convenience and readily available disposable batteries.

When powered by the SL-B9 rechargeable battery pack, the TLR-7 X Sub delivers 725 lumens, 7,700 candela, and a 176-meter beam distance with a 1-hour runtime. Using a CR123A lithium battery produces 550 lumens, 5,000 candela, and a 141-meter beam distance, while extending runtime to 1.5 hours. The included SL-B9 battery recharges via USB-C in approximately 2.5 hours and is rated for up to 500 recharge cycles, making it a convenient and economical option for frequent use.

The TLR-7 X Sub features ambidextrous rear paddle switches with interchangeable HIGH and LOW switch options, allowing shooters to customize activation based on their grip and shooting style. A built-in Safe-Off feature helps prevent accidental activation during storage or transport while preserving battery life. The front-loading battery compartment allows battery changes without removing the light from the firearm.

Built for reliable performance in demanding conditions, the TLR-7 X Sub is machined from 6000 Series aircraft aluminum with a durable black anodized finish. Its impact- and chemical-resistant engineered polymer switch housing, shock-mounted BOROFLOAT® glass lens, and IPX7 waterproof construction provide durability and dependable performance when you need it.

Features

Using the SL-B9® USB-C Rechargeable Battery

• 725 lumens on High
• 7,700 candela peak beam intensity
• 176-meter beam distance
• 1-hour runtime on High
• USB-C rechargeable in approximately 2.5 hours
• Rated for up to 500 recharge cycles

Using a CR123A Lithium Battery

• 550 lumens on High
• 5,000 candela peak beam intensity
• 141-meter beam distance
• 1.5-hour runtime on High

Shared Features

• Multi-Fuel design accepts either one Streamlight SL-B9® USB-C rechargeable battery pack or one CR123A lithium battery

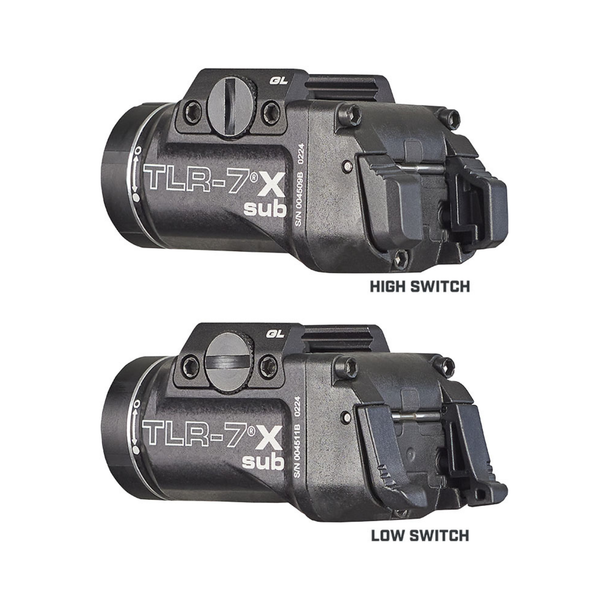

• Ambidextrous rear paddle switches with interchangeable HIGH and LOW switch options
• Front-loading battery compartment allows battery changes without removing the light
• Safe-Off feature helps prevent accidental activation and helps preserve battery life
• Specialized rail clamp system for a secure fit on compatible subcompact handguns
• 6000 Series machined aircraft aluminum body with black anodized finish
• Impact- and chemical-resistant engineered polymer switch housing
• Shock-mounted, impact-resistant BOROFLOAT® glass lens
• IPX7 waterproof (submersible to 1 meter for up to 30 minutes)

Specifications

Performance with SL-B9® Rechargeable Battery

• Maximum Output (High): 725 lumens
• Peak Beam Intensity: 7,700 candela
• Beam Distance: 176 meters
• Runtime (High): 1 hour
• Weight: 2.64 oz. (74.84 g)

Performance with CR123A Lithium Battery

• Maximum Output (High): 550 lumens
• Peak Beam Intensity: 5,000 candela
• Beam Distance: 141 meters
• Runtime (High): 1.5 hours
• Weight: 2.39 oz. (67.76 g)

General Specifications

• Battery Compatibility: One Streamlight SL-B9® USB-C rechargeable battery pack or one CR123A lithium battery
• Battery Quantity: 1
• Length: 2.51 in. (6.38 cm)
• Construction: 6000 Series machined aircraft aluminum with black anodized finish
• Lens: Shock-mounted BOROFLOAT® glass
• Waterproof Rating: IPX7
• Available Color: Black
• Warranty: Limited Lifetime Warranty

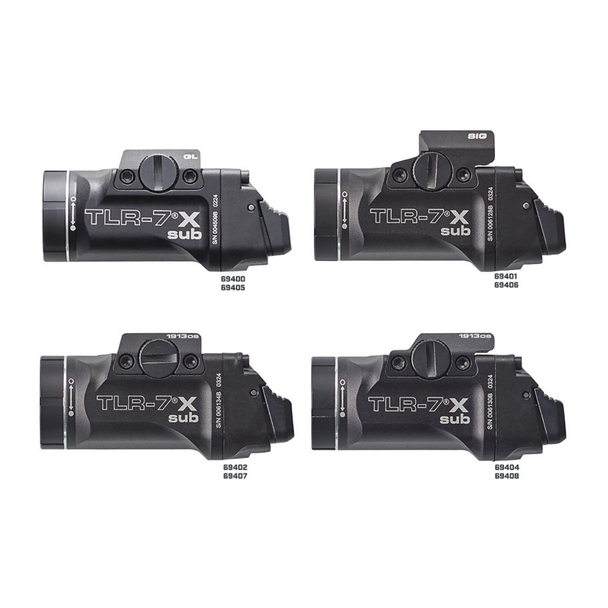

Fitment Options

The TLR-7 X Sub is available in multiple mounting configurations to accommodate different subcompact handgun rail systems. Select the appropriate fitment for your firearm.

• Glock 43X/48 MOS: Compatible with Glock 43X MOS and 48 MOS
• SIG P365/P365XL: Compatible with SIG Sauer P365/P365XL with closed rail systems
• 1913: Compatible with firearms using a standard 1913 rail
• 1913OS: Compatible with firearms requiring the 1913OS mounting configuration

Verify your firearm's rail configuration before ordering.
